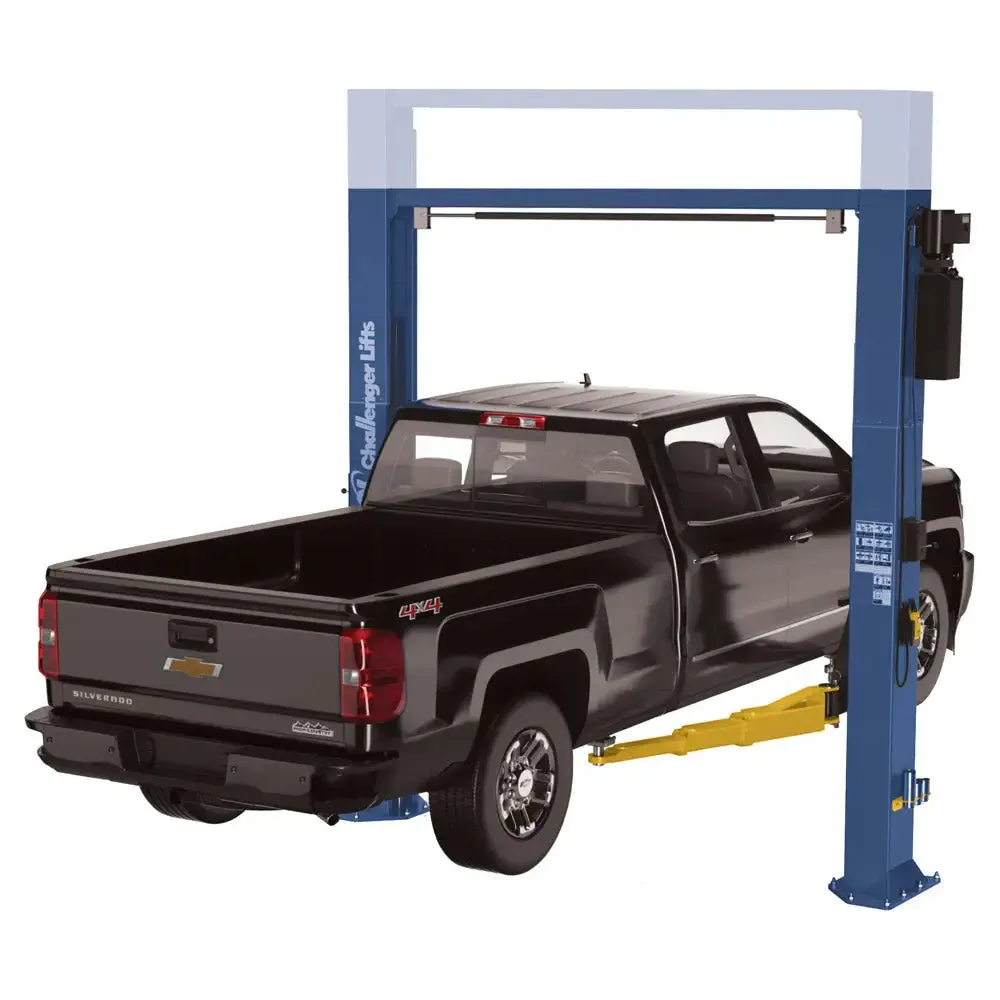

For shops with less than 12 ft ceilings, our CL12A-LC is the pinnacle of safety and quality. ALI Certified and Professional Approved, this low-ceiling model boasts a robust 12,000 lbs. capacity. Its standout feature is a 6" to 12" width adjustment during installation, offering unparalleled flexibility. With 3-Stage arms, premium telescoping footpads, and EV Service Ready capability, it's a trusted brand for diverse automotive needs. Elevate your workshop with this Challenger in low-ceiling efficiency.
Features:
- Low-Ceiling Model: ALI Certified, Ideal for <12ft Workshops
- 12,000 lbs. Capacity: Professional Approved, Safety and Quality Assurance
- 6" to 12" Width Adjustment: Versatile Fit for Various Vehicles
- 3-Stage Arms, Telescoping Footpads: Precision and Stability Assured
- EV Service Ready: Future-Proof, Keeping Pace with Automotive Advancements
- Trusted Brand: Challenger's Legacy of Reliability and Performance
Specs:
Configuration: SymmetricalLifting Capacity: 12,000 lbs.
Lifting Configuration: Symmetric
Arms: 3-stage front/3-stage rear
Rise Height: 80.75in
Overall Height: 11ft 11in
Adjustable Width Overall: 142in / 148in / 154in
Drive-Thru Clearance: 103.5in, 109.5in or 115.5in
Floor to Overhead Switch: 11ft 4.5in
Arm Reach (Min.): 27.5in
Arm Reach (Max.): 59in
Screw Pad Height *: 4.75in - 6.625in
Inside Columns: 114.5in / 120.5in / 126.5in
Motor / Voltage: 2HP, 208v-230v, 60Hz, 1Ph
Speed of Rise (approximate): 60s
Ceiling Height Required: 12ft Minimum
Colors Available: Red, Blue, Black
ALI® Certified: Yes
Ref No.
CL12-LC (Older Model)
Similar Products
CL12A (Standard Model)
CL12A-1 (1ft Ext Model)
CL12A-2 (2ft Ext Model)
Ref Name
Challenger Low-Ceiling 12K Lift
ALI Certified 12K Low-Ceiling Lift
Application:
Auto RepairDealerships
Service Centers
Workshops
Garages
